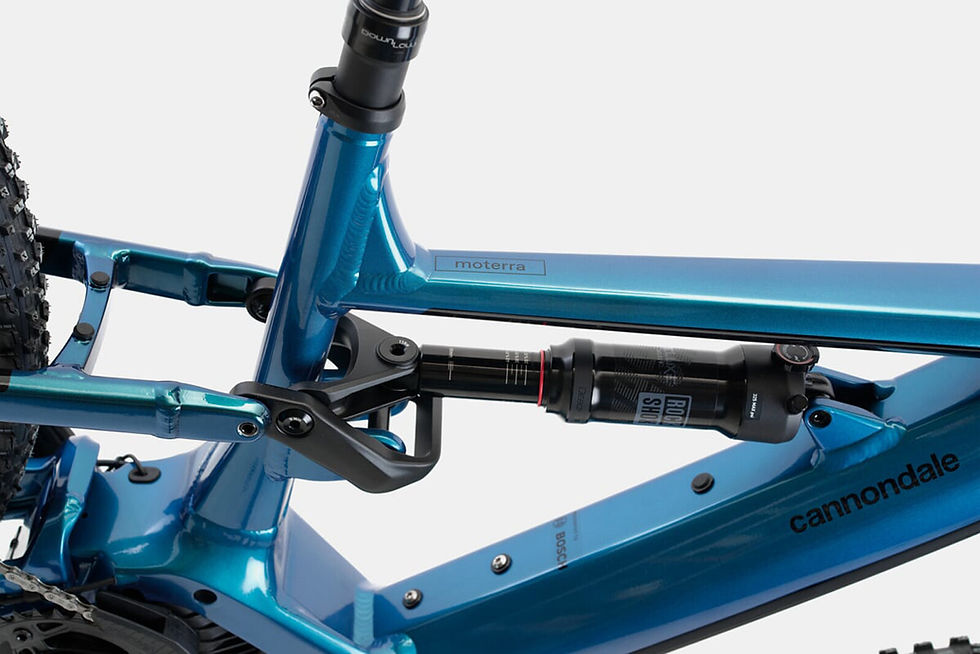

Thanks to its low centre of gravity, modern geometry and short struts, the handling characteristics of the Moterra are very high. This makes the Moterra the ideal companion for demanding uphill and downhill natural trails. Riders come in different weights. The Proportional Response approach is the only frame design that adjusts the rear suspension for each size, so every rider gets optimal traction, suspension behavior and bike control.
The frames are engineered with Cannondale's Size-Specific Proportional Response approach. This changes the rear suspension kinematics to match the best possible suspension response for different rider heights in each situation. This maximizes traction and suspension behavior on the exits, superior system behavior under braking, and responsiveness of expression in every part of the trail.
BOSCH Performance Line CX Smart system
BOSCH Performance Line CX Smart System. A powerful and dynamic motor for intuitive handling and a unique driving experience. Thanks to its multi-sensor concept and innovative Bosch motor management, the Performance Line CX Smart System sets new technical standards - responding flexibly and responsively to develop its full potential on technically demanding tracks.
One powerful feature is the eMTB mode, which uses exactly as much power as needed and allows you to focus all your attention on driving.
BOSCH POWER TUBE 750
Original, high-capacity integrated battery BOSCH PowerTube 750. It enables mountain and trekking e-bikes to travel really long distances. Thank to its compact size and minimalist design, the battery is integrated into the e-bike to achieve optimum effect.
- Compatibility only for Bosch Performance Line CX Smart System (BES3) - model year 2022 and newer
- Length: 481.3 mm
- Horizontal and vertical variants - they differ in the way the battery is mounted in the frame.
- The integrated BMS ensures long range and durability.
- It has no memory effect and will not self-discharge.
Display BOSCH Kiox
Kiox is a travel computer for the most demanding sports riders. Kiox has all the classic features of a travel computer while giving you access to digital world using a smartphone app. The colour display provides you all riding data while you monitor the terrain. Kiox can record your trips and comunicate with your smartphone and eBike Connect portal so you can get the most out of the latest technology. This makes Kiox the perfect companion for every ride.
FEATURES:
- Motor: BOSCH Performance Line CX
- Power: 75 Nm
- Battery capacity: 750 Wh
- Shifter: 12 speeds
- Wheels: 29"
- Fork stroke: 150 mm (front)
CANNONDALE Moterra Neo 3
Drive type Bosch Performance Line CX Control Bosch Kiox Capacity and battery type Bosch PowerTube 750Wh Frame type and material Moterra Neo, SmartForm C1 Alloy, 150mm travel, Proportional Response Tuned Suspension Front fork RockShox Yari RC, 150mm, 15x110mm Boost, 44mm offset Number of gears 12 Derailleur Shimano XT Shifters Shimano Deore M6100, 12-speed Type and brand of brakes Shimano MT420 4-piston hydraulic disc, 203/203mm rotors Crankset FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T Cassette Shimano Deore M6100, 10-51, 12-speed The stem Cannondale 3, 6061 Alloy, 31.8, 0° Chain Shimano Deore 6100, 12-speed Handlebars Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm Saddle Fabric Scoop Shallow Sport, steel rails Seat post TranzX dropper, internal routing, 31.6, 130mm (S), 150mm (M-XL) Rims WTB ST i30 TCS, 32h, tubeless ready Front hub Formula 15x110mm thru-axle Rear hub Shimano MT410, 12x148mm thru-axle Tyres Maxxis Grips Fabric FunGuy Head composition Integrated Sealed Bearing, Tapered Charger Bosch 4A Wires Stainless Steel, 14g Brake levers Shimano MT401 hydraulic disc
